System Architecture

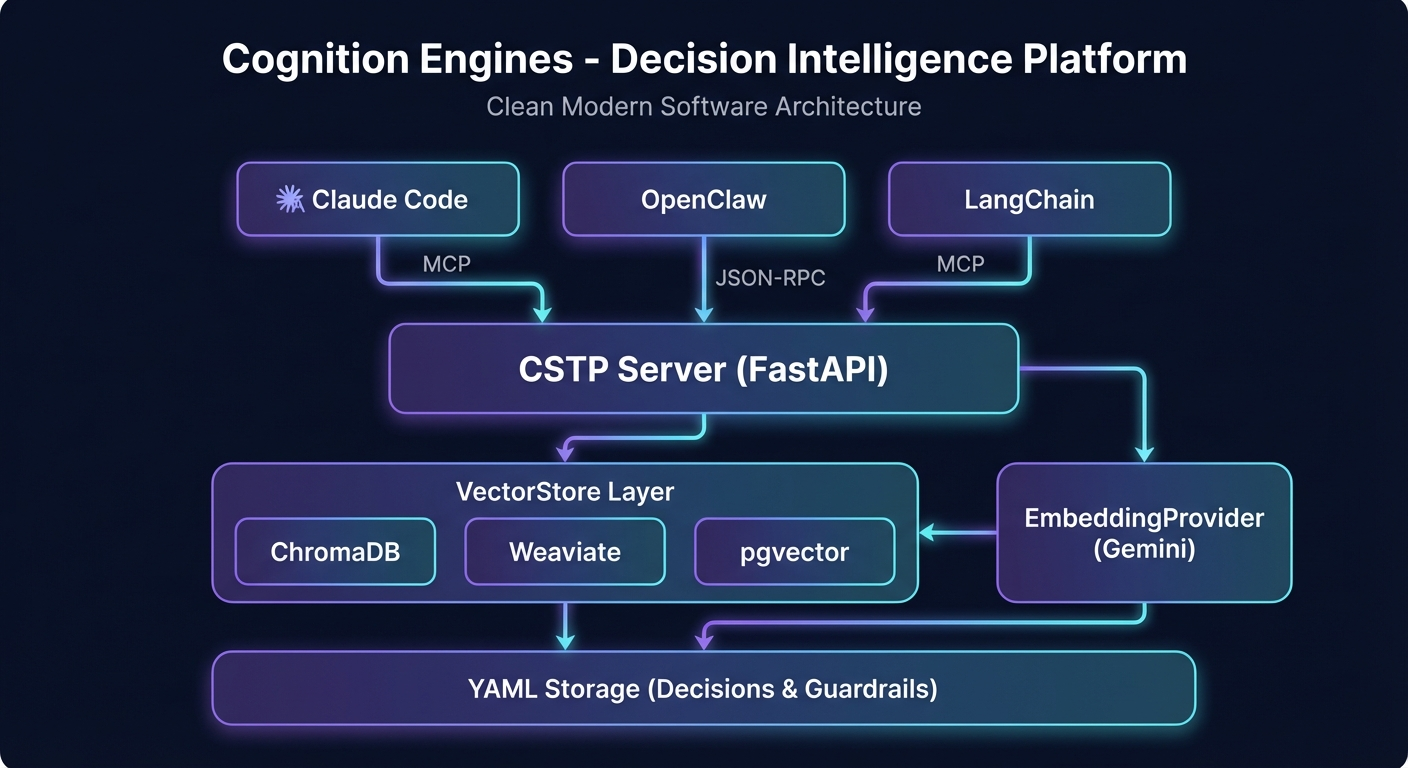

Cognition Engines Architecture

Component Breakdown

1. A2A Layer (`a2a/`)

The Agent-to-Agent layer is the network-facing surface of Cognition Engines.

File	Purpose
`server.py`	FastAPI application with lifespan management, CORS, route registration, and MCP mount at `/mcp`
`config.py`	Multi-source configuration: YAML file → environment variables → defaults
`auth.py`	Bearer token authentication with constant-time comparison (`secrets.compare_digest`)
`mcp_server.py`	MCP Server with 5 tool handlers; exposes `mcp_app` Server instance for mounting
`mcp_schemas.py`	Pydantic input schemas for MCP tool definitions (auto-generates JSON Schema for tool discovery)
`__init__.py`	Package exports

Endpoints:

POST /cstp — JSON-RPC 2.0 dispatch (authenticated)
POST|GET /mcp — MCP Streamable HTTP transport (tool calls + event streams)
GET /health — Health check with uptime (unauthenticated)
GET /.well-known/agent.json — A2A agent card for discovery (unauthenticated)

2. CSTP Services (`a2a/cstp/`)

Each JSON-RPC method is backed by a dedicated service module:

Service	Method	Description
`query_service.py`	`cstp.queryDecisions`	Semantic search over ChromaDB with optional BM25 hybrid
`decision_service.py`	`cstp.recordDecision`	Record new decisions as YAML + ChromaDB index
`decision_service.py`	`cstp.reviewDecision`	Record outcome of a past decision for calibration
`guardrails_service.py`	`cstp.checkGuardrails`	Evaluate context against all loaded guardrails
`guardrails_service.py`	`cstp.listGuardrails`	List active guardrail definitions
`calibration_service.py`	`cstp.getCalibration`	Compute Brier scores, confidence buckets, and variance
`attribution_service.py`	`cstp.attributeOutcomes`	Auto-attribute outcomes via PR stability
`drift_service.py`	`cstp.checkDrift`	Compare 30-day vs. 90-day+ calibration
`reindex_service.py`	`cstp.reindex`	Delete and rebuild ChromaDB collection
`deliberation_tracker.py`	(auto-hook)	Tracks inputs and steps for reasoning traces
`bridge_extractor.py`	(auto-hook)	Extracts structure/function from decision text
`dispatcher.py`	(router)	Maps JSON-RPC method names to async handlers
`models.py`	(shared)	Pydantic-style dataclasses for request/response objects
`bm25_index.py`	(internal)	BM25Okapi keyword index with caching and score merging

3. MCP Layer (`a2a/mcp_server.py` + `a2a/mcp_schemas.py`)

The MCP layer provides Model Context Protocol access to CSTP capabilities. It is a thin bridge — Pydantic schemas validate inputs, then tool handlers delegate directly to CSTP service functions.

Component	File	Description
`mcp_app`	`mcp_server.py`	`Server("cstp-decisions")` instance — importable for ASGI mounting
`list_tools()`	`mcp_server.py`	Returns 5 `Tool` definitions with JSON Schema from Pydantic models
`call_tool()`	`mcp_server.py`	Dispatches tool calls to `_handle_*` functions
`run_stdio()`	`mcp_server.py`	Runs the MCP server with stdio transport
`StreamableHTTPSessionManager`	`server.py`	Manages Streamable HTTP sessions; mounted at `/mcp` via lifespan
`QueryDecisionsInput`	`mcp_schemas.py`	Schema for `query_decisions` tool
`CheckActionInput`	`mcp_schemas.py`	Schema for `check_action` tool
`LogDecisionInput`	`mcp_schemas.py`	Schema for `log_decision` tool
`ReviewOutcomeInput`	`mcp_schemas.py`	Schema for `review_outcome` tool
`GetStatsInput`	`mcp_schemas.py`	Schema for `get_stats` tool

MCP tools → CSTP method mapping:

MCP Tool	CSTP Method	Service
`query_decisions`	`cstp.queryDecisions`	`query_service.py`
`check_action`	`cstp.checkGuardrails`	`guardrails_service.py`
`log_decision`	`cstp.recordDecision`	`decision_service.py`
`review_outcome`	`cstp.reviewDecision`	`decision_service.py`
`get_stats`	`cstp.getCalibration`	`calibration_service.py`

4. Core Engines (`src/cognition_engines/`)

The library-level logic, usable independently of the HTTP server.

Accelerators (`accelerators/`)

Class	File	Description
`SemanticIndex`	`semantic_index.py`	ChromaDB HTTP API wrapper with Gemini embedding generation, decision indexing, filtered vector query

Guardrails (`guardrails/`)

Class	File	Description
`GuardrailEngine`	`engine.py`	Loads YAML guardrails, evaluates conditions + requirements, returns pass/block/warn results
`GuardrailCondition`	`engine.py`	Parsed condition with operator support (`<`, `>`, `=`, `!=`, `in`)
`GuardrailRequirement`	`engine.py`	Boolean requirement check (field must be `true`)
`Guardrail`	`engine.py`	Full guardrail definition with scope, conditions, requirements, action, message
`ConditionEvaluator`	`evaluators.py`	Protocol for pluggable evaluators
`FieldCondition`	`evaluators.py`	v2 field comparison with extended operators
`SemanticCondition`	`evaluators.py`	Checks semantic similarity to past decisions
`TemporalCondition`	`evaluators.py`	Time-window based conditions
`AggregateCondition`	`evaluators.py`	Statistical aggregate checks (e.g., success rate < 50%)
`CompoundCondition`	`evaluators.py`	AND/OR logical composition of conditions
`AuditLog`	`audit.py`	Manages JSON audit trail for guardrail evaluations
`AuditRecord`	`audit.py`	Per-decision audit record with override support

Patterns (`patterns/`)

Class	File	Description
`PatternDetector`	`detector.py`	Loads YAML decisions, generates calibration reports, detects anti-patterns, produces category analysis
`CalibrationBucket`	`detector.py`	Confidence bucket with Brier score computation
`AntiPattern`	`detector.py`	Detected anti-pattern (e.g., overcalibration, flip-flopping)

5. Web Dashboard (`dashboard/`)

A Flask-based web UI for human-friendly decision browsing and outcome review.

File	Description
`app.py`	Flask routes: decisions list, detail, review, calibration
`config.py`	Dashboard-specific config (CSTP URL, auth, port)
`auth.py`	HTTP Basic Auth decorator
`cstp_client.py`	Async CSTP client for backend communication
`models.py`	Dashboard-specific data models
`templates/`	Jinja2 HTML templates (base, decisions, decision, review, calibration)
`static/`	CSS/JS assets

6. Guardrail Definitions (`guardrails/`)

File	Description
`cornerstone.yaml`	Non-negotiable block-level rules (production review, confidence minimum, backtest requirement)
`templates/financial.yaml`	Template for financial/trading projects (risk assessment, position limits, audit trail)
`templates/production-safety.yaml`	Template for production deployments (code review, CI, rollback, no-Friday deploys)

7. CLI (`bin/cognition`)

A standalone Python CLI providing all core operations without the HTTP server.

Data Flow

Query Flow

mermaid

sequenceDiagram
    participant Agent
    participant FastAPI as POST /cstp
    participant Dispatcher
    participant QuerySvc as query_service
    participant Gemini as Gemini API
    participant Chroma as ChromaDB
    participant BM25 as BM25 Index

    Agent->>FastAPI: JSON-RPC queryDecisions
    FastAPI->>Dispatcher: dispatch
    Dispatcher->>QuerySvc: query_decisions()
    QuerySvc->>Gemini: generate embedding
    Gemini-->>QuerySvc: 768-dim vector
    QuerySvc->>Chroma: semantic search
    Chroma-->>QuerySvc: ranked results
    opt hybrid mode
        QuerySvc->>BM25: keyword search
        BM25-->>QuerySvc: BM25 scores
        QuerySvc->>QuerySvc: merge & rank
    end
    QuerySvc-->>Agent: JSON-RPC response

Record Flow

mermaid

sequenceDiagram
    participant Agent
    participant FastAPI as POST /cstp
    participant Dispatcher
    participant DecSvc as decision_service
    participant Guard as guardrails_service
    participant Gemini as Gemini API
    participant Chroma as ChromaDB
    participant Disk as YAML File

    Agent->>FastAPI: JSON-RPC recordDecision
    FastAPI->>Dispatcher: dispatch
    Dispatcher->>DecSvc: record_decision()
    DecSvc->>Guard: check guardrails
    Guard-->>DecSvc: pass/fail
    DecSvc->>DecSvc: build YAML structure
    DecSvc->>Disk: write YAML file
    DecSvc->>Gemini: generate embedding
    Gemini-->>DecSvc: 768-dim vector
    DecSvc->>Chroma: index decision
    DecSvc-->>Agent: decision ID + path

MCP Data Flow

mermaid

sequenceDiagram
    participant Client as MCP Client
    participant Transport as Transport Layer
    participant MCPSrv as MCP Server (mcp_app)
    participant Services as CSTP Services
    participant Storage as ChromaDB + YAML

    alt Streamable HTTP
        Client->>Transport: POST /mcp (HTTP)
        Transport->>MCPSrv: StreamableHTTPSessionManager
    else stdio
        Client->>Transport: stdin/stdout
        Transport->>MCPSrv: stdio_server
    end

    MCPSrv->>MCPSrv: validate via Pydantic schemas
    MCPSrv->>Services: direct function call
    Services->>Storage: read/write
    Storage-->>Services: result
    Services-->>MCPSrv: response dict
    MCPSrv-->>Client: TextContent (JSON)

Guardrail Flow

mermaid

sequenceDiagram
    participant Agent
    participant FastAPI as POST /cstp
    participant Dispatcher
    participant GuardSvc as guardrails_service
    participant Engine as GuardrailEngine
    participant Audit as AuditLog

    Agent->>FastAPI: JSON-RPC checkGuardrails
    FastAPI->>Dispatcher: dispatch
    Dispatcher->>GuardSvc: evaluate_guardrails()
    GuardSvc->>Engine: load YAML (cached 5 min)
    Engine->>Engine: match conditions
    Engine->>Engine: evaluate requirements
    Engine-->>GuardSvc: violations + warnings
    GuardSvc->>Audit: log audit trail
    GuardSvc-->>Agent: allowed/blocked + details

Deliberation & Bridge Flow

mermaid

sequenceDiagram
    participant Agent
    participant FastAPI as POST /cstp
    participant Tracker as DeliberationTracker
    participant DecSvc as decision_service
    participant Extractor as BridgeExtractor
    participant Storage as ChromaDB + YAML

    Agent->>FastAPI: queryDecisions("...")
    FastAPI->>Tracker: track_query(agent_id, query)
    FastAPI-->>Agent: results

    Agent->>FastAPI: checkGuardrails("...")
    FastAPI->>Tracker: track_check(agent_id, action)
    FastAPI-->>Agent: allowed/blocked

    Agent->>FastAPI: recordDecision("...", bridge=None)
    FastAPI->>DecSvc: record_decision()

    DecSvc->>Tracker: auto_attach_deliberation(agent_id)
    Tracker-->>DecSvc: Deliberation object (inputs + steps)

    alt No explicit bridge
        DecSvc->>Extractor: auto_extract_bridge(decision, context)
        Extractor-->>DecSvc: BridgeDefinition (structure + function)
    end

    DecSvc->>Storage: write YAML (with deliberation + bridge)
    DecSvc->>Storage: index (embedding: structure + function)
    DecSvc-->>Agent: success

Deployment Architecture

mermaid

graph TB
    subgraph Docker["Docker Compose"]
        subgraph CSTP["cstp-server (Python 3.11)"]
            PORT_9991["Port: 9991"]
            EP_CSTP["/cstp — JSON-RPC 2.0"]
            EP_MCP["/mcp — MCP Streamable HTTP"]
            EP_HEALTH["/health"]
            VOL_CONFIG["config/ (ro)"]
            VOL_GUARD["guardrails/"]
            VOL_DEC["decisions/"]
        end

        subgraph CHROMA["chromadb (chromadb/chroma)"]
            PORT_8000["Port: 8000"]
            VOL_CHROMA["chroma_data"]
            HB["/api/v1/heartbeat"]
        end

        CSTP -->|HTTP| CHROMA
    end

    NET["Network: cstp-network (bridge)"]
    Docker --- NET

Docker Image: Multi-stage build (python:3.11-slim)

Builder stage: Installs uv and Python dependencies from pyproject.toml
Runtime stage: Copies installed packages, app code, creates non-root user
Security: Runs as appuser (non-root), read-only config mounts
MCP: Both /cstp (JSON-RPC) and /mcp (MCP Streamable HTTP) are served on port 9991

Security Model

Layer	Mechanism
Transport	HTTPS (reverse proxy recommended for production)
Authentication	Bearer token per agent, validated with `secrets.compare_digest`
Authorization	Agent ID embedded in each request; audit trail records who did what
MCP Auth	MCP Streamable HTTP inherits FastAPI bearer token middleware
Secrets	Environment variables or `${VAR}` expansion in YAML config
Container	Non-root user, minimal base image, no-cache pip installs
CORS	Configurable allowed origins (defaults to `*`)
CSRF	Dashboard uses Flask-WTF CSRF protection

System Architecture ​

Component Breakdown ​

1. A2A Layer (a2a/) ​

2. CSTP Services (a2a/cstp/) ​

3. MCP Layer (a2a/mcp_server.py + a2a/mcp_schemas.py) ​

4. Core Engines (src/cognition_engines/) ​

Accelerators (accelerators/) ​

Guardrails (guardrails/) ​

Patterns (patterns/) ​

5. Web Dashboard (dashboard/) ​

6. Guardrail Definitions (guardrails/) ​

7. CLI (bin/cognition) ​

Data Flow ​

Query Flow ​

Record Flow ​

MCP Data Flow ​

Guardrail Flow ​

Deliberation & Bridge Flow ​

Deployment Architecture ​

Security Model ​

System Architecture

Component Breakdown

1. A2A Layer (`a2a/`)

2. CSTP Services (`a2a/cstp/`)

3. MCP Layer (`a2a/mcp_server.py` + `a2a/mcp_schemas.py`)

4. Core Engines (`src/cognition_engines/`)

Accelerators (`accelerators/`)

Guardrails (`guardrails/`)

Patterns (`patterns/`)

5. Web Dashboard (`dashboard/`)

6. Guardrail Definitions (`guardrails/`)

7. CLI (`bin/cognition`)

Data Flow

Query Flow

Record Flow

MCP Data Flow

Guardrail Flow

Deliberation & Bridge Flow

Deployment Architecture

Security Model
